Digital Indicator

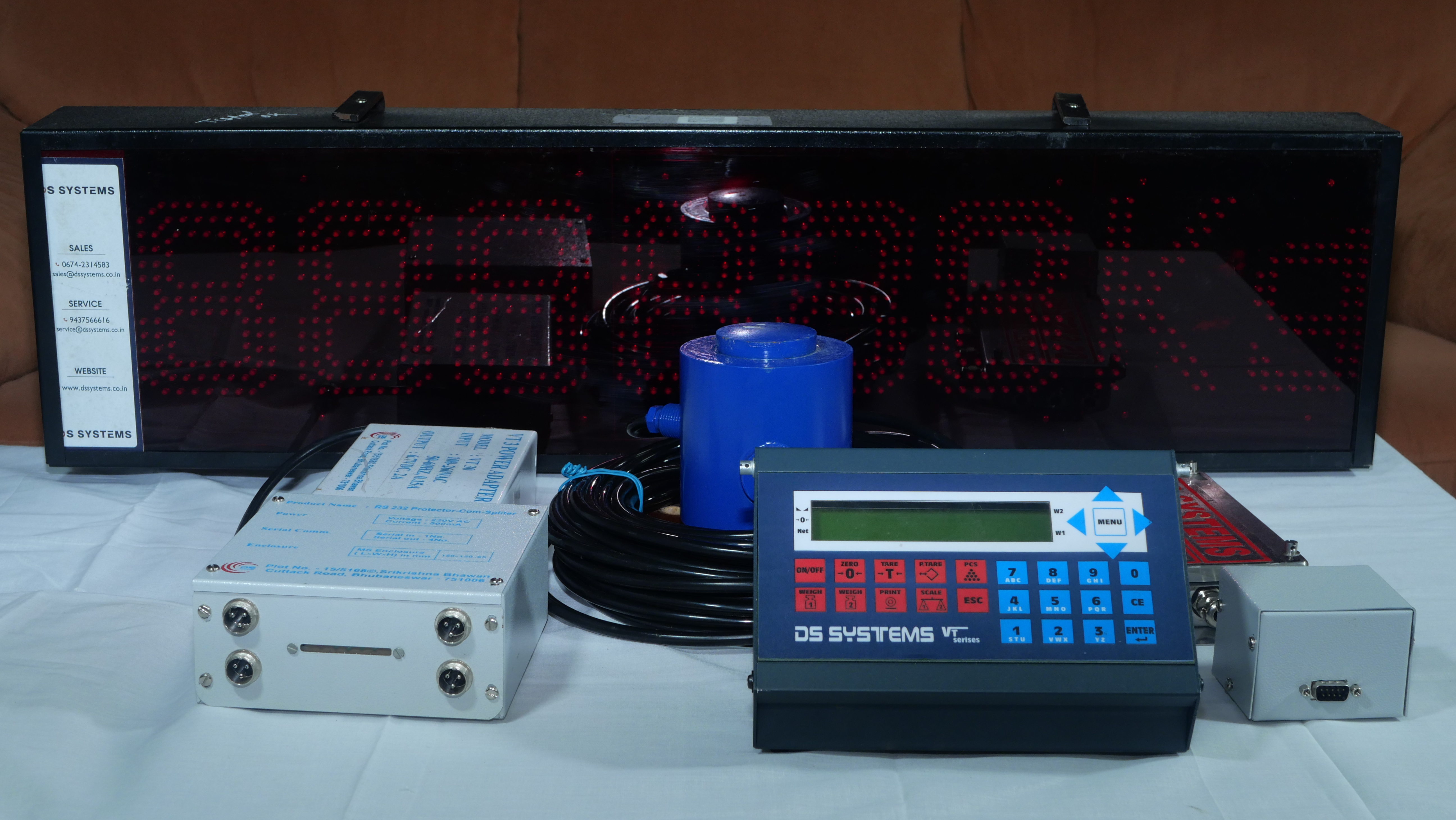

VT 300 is a very powerfull and calibrated indicator designed for weighbridge to give accurate weight measurement. The indicator is very compact in design, easy to use and supports a wide range of communication processes. It comes with a 16X2 LCD display and all function keys mounted on keypad.
- DESCRIPTION
- FEATURES
- DOWNLOAD PDF
VT 300 is a very powerfull and calibrated indicator designed for weighbridge to give accurate weight measurement. The indicator is very compact in design, easy to use and supports a wide range of communication processes. It comes with a 16X2 LCD display and all function keys mounted on keypad.
VT 300 is a very powerfull and calibrated indicator designed for weighbridge to give accurate weight measurement. The indicator is very compact in design, easy to use and supports a wide range of communication processess. It comes with a 16X2 LCD display and all function keys mounted on keypad.
- Supports digital and analog load cells
- Easy calibration when used with digital load cells
- Easy digital corner compensation
- Elaborated diagnostics of digital weighbridge load cells
- Easy service and maintenance
- Large, 16-character LCD display
- 27-key keyboard featuring alphanumeric and function keys
- Up to three serial ports with printing and networking
- Analog output for PLC interface (optional)
- Two opto-isolated weight setpoints
- Alibi (Flash) memory for transaction records
- Real-time clock
- Stainless steel enclosure (IP65), aluminum enclosure (IP40)
- Weighing and counting operating modes
- OIML R-76 approved to 10,000d
- Dual scale operation (one digital, one analog)
- 4 programmable ticket formats
- Optional - Analog output for PLC interface - Second RS232 print port (for aluminum version only) - PS2 keyboard interface (for aluminum version only)
